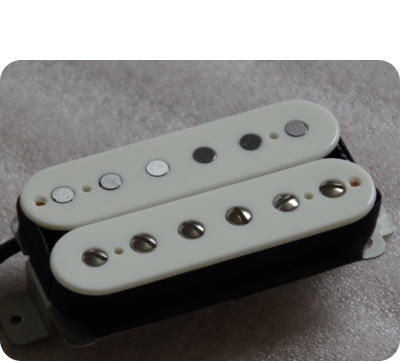

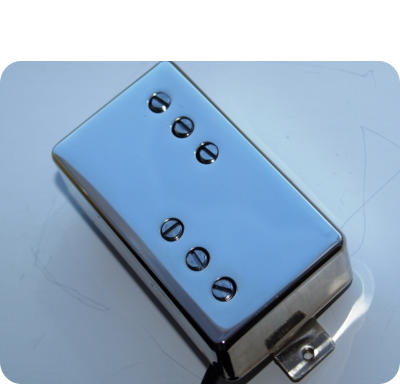

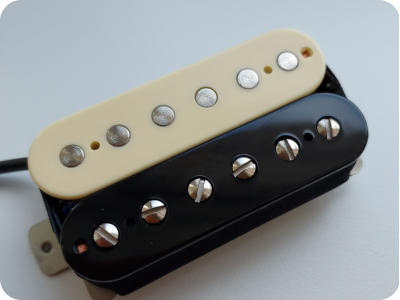

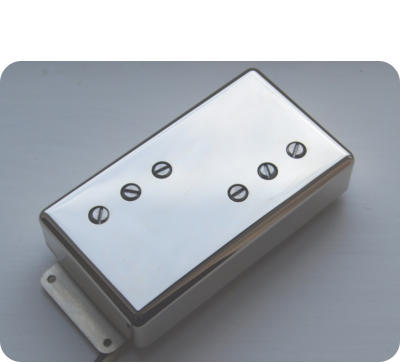

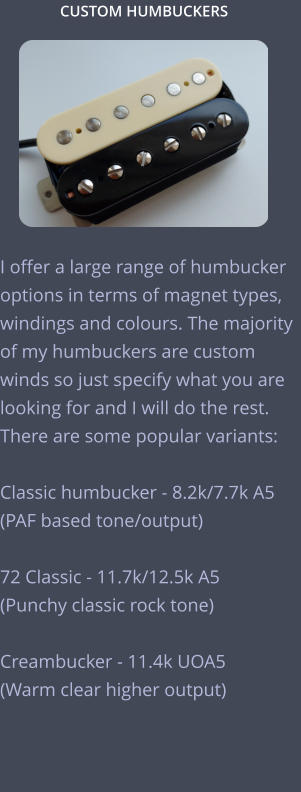

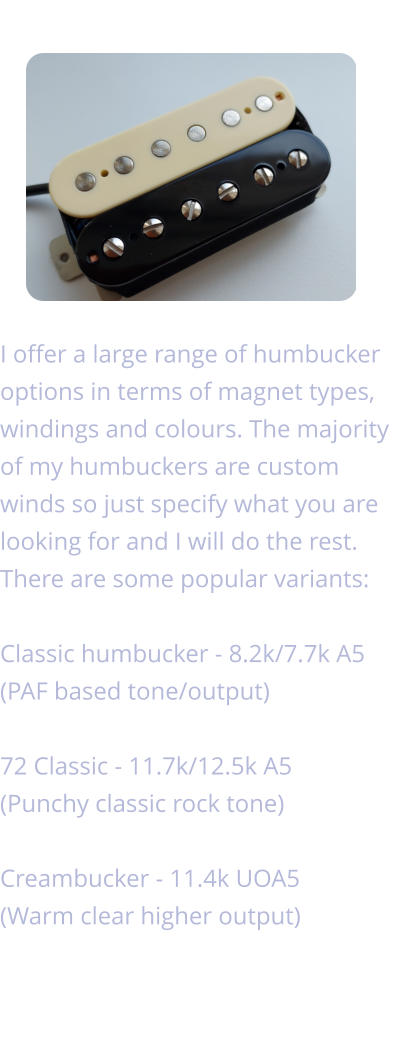

Humbuckers
“PAF” Bridge 8.1k, Neck 7.6k
Classic Bridge 8.6k, Neck 7.9k
‘72 Classic Bridge 13.2k, Neck 12.5k Custom 13.5k up to 26k
The standard magnet for the PAF, Classic and 72 Classic pickups is cast Alnico 5, although Alnico 2,3, and 4
are available as alternatives. “PAF” and “Classic” pickups are wound with 42AWG copper wire, the
exception being the 72 Classic which despite it’s higher resistance has the same output as the 8.8k and 8.4k
Classics but with a more focused bottom end and a little extra in the mid range. Ideal for trem equiped
guitars or if you simply want a more punchy sound without sacrificing the top end.
All variants are available in 50, 52 or 52.8mm spacing and open coil or with covers.
S-BUCKER
Designed specifically to produce a realistic single coil tone without the marked drop in output experienced
with standard format humbuckers and of course to produce a good humbucking tone as well - classic
humbucking tone with a bit of extra sparkle.
The slug coil features a special winding and alnico slug magnets, a bar magnet links the two coils together
for the humbucking output. The S-Bucker has a very different wiring arrangement to a regular humbucker
and a DP/DT switch (toggle or push/pull) is essential to operate it. Available with or without a cover,
bridge or neck position. Output in humbucking mode is slightly above what you would expect for a PA

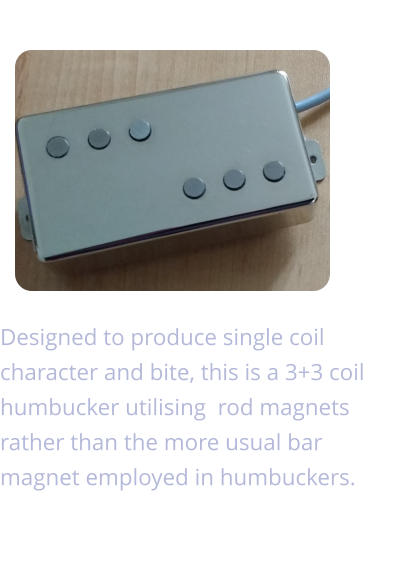

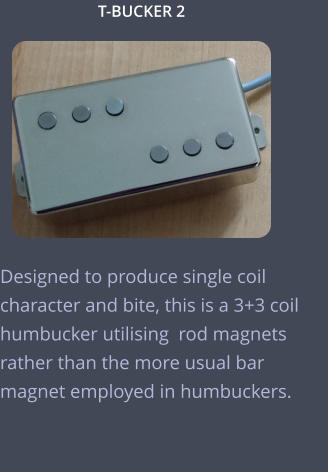

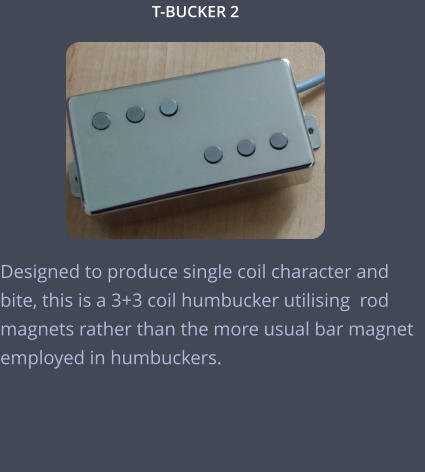

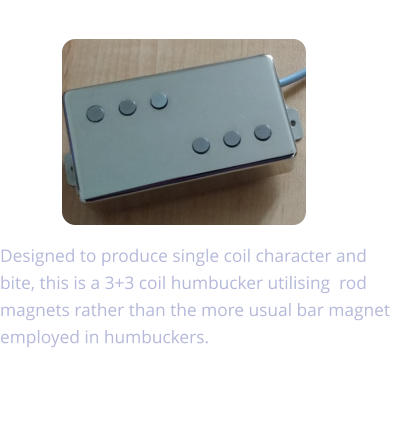

T-BUCKER 2
Essentially a split single coil pickup, two 3 pole coils arranged in a humbucker case to produce a nice
twangy hum free pickup with plenty of bite. Standard magnets are Alnico 5 but Alnicos 2 and 3 are
available upon request. The T-Bucker 2 is available only in covered format.
WRHB
A drop in replacement for the modern look alikes that are really regular humbuckers in disguise and
consequently sound little like the originals. The WRHB features individual threaded visible pole magnets,
solid rod concealed magnets, hand machined bobbins and reflector plate in a nickel silver case. Supplied
as standard with a four core shielded cable as these pickups are capable of producing some nice split
tones. I also offer a conversion service for your existing RI pickups which involves the complete
replacement of the internal parts of the pickup whist retaining your cover and base plate.

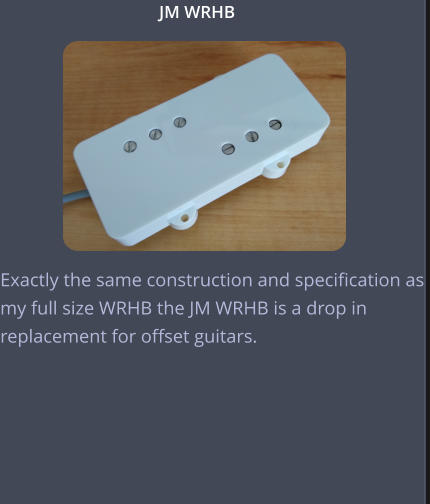

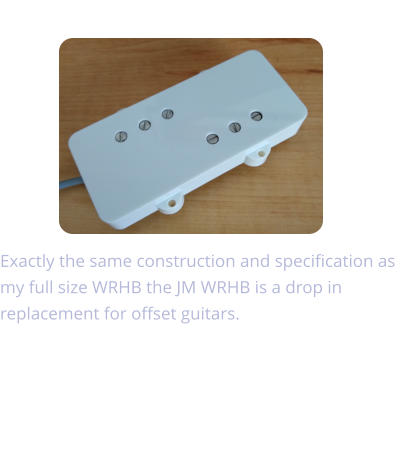

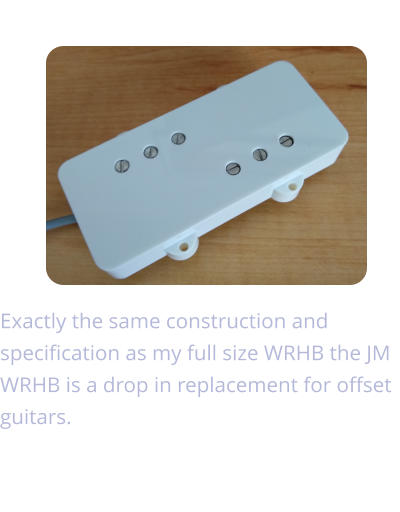

JAZZ-M WRHB
A WRHB in a Jazz M cover! Same internal construction as the WRHB but with a black, cream or
white plastic cover. Pole spacing is tweaked to match your guitar. Again, two or four core cable
options.

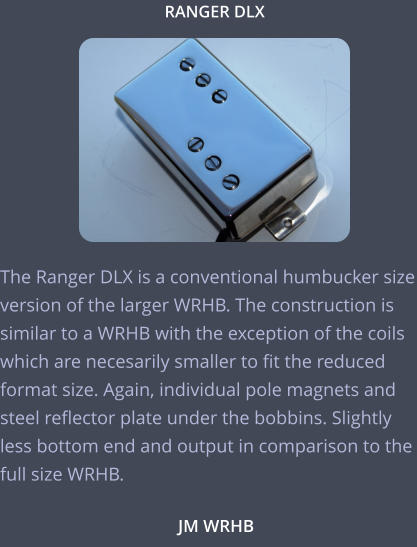

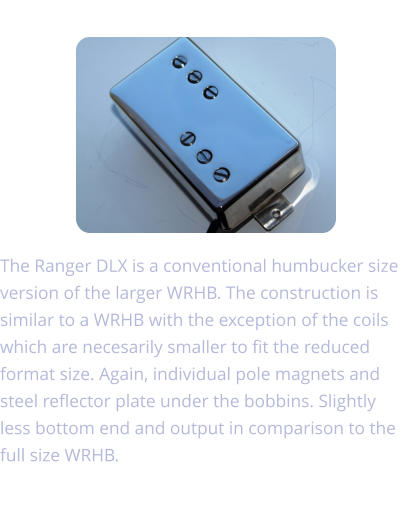

RANGER DLX
The Ranger DLX is a regular humbucker size variant of the WRHB. Featuring the same basic
internal format with six visible individual threaded magnet poles and six hidden slug poles, the
Ranger DLX produces a brighter, lower output than the full size WRHB with loads of sparkle and
chime. Supplied as standard with a cover but available as open coil upon request.

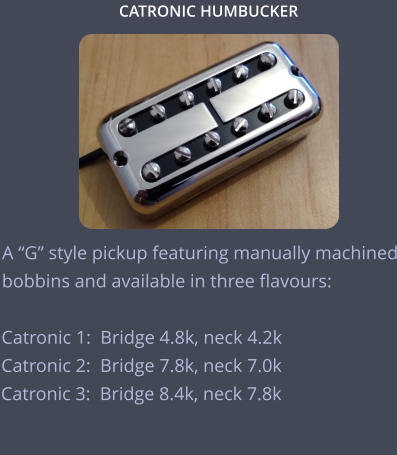

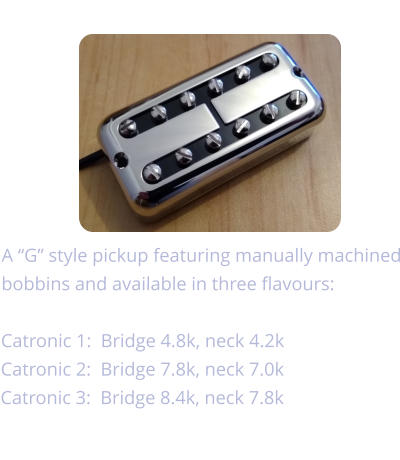

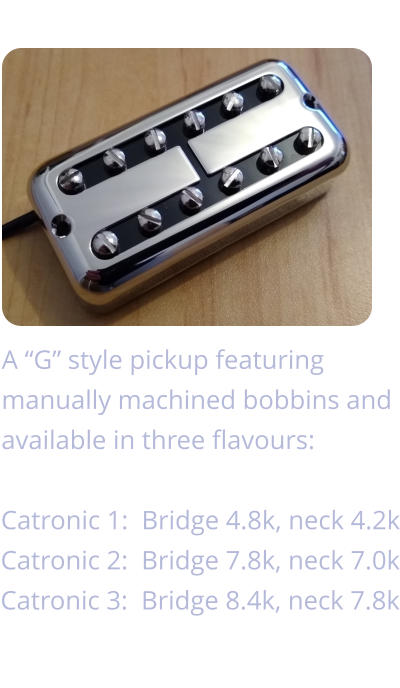

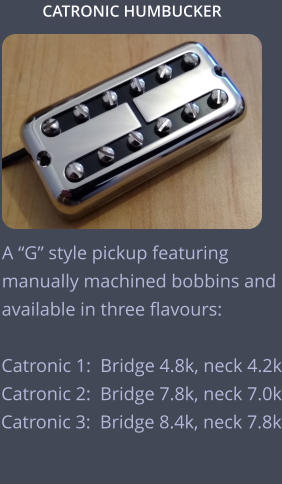

CATRONIC
A drop in replacement for original G style pickups, available in three flavours:
Catronic-1
Neck 4.2k, bridge 4.8k
Catronic-2
Neck 7.0k, bridge 7.8k
Catronic-3
Neck 7.8k, bridge 8.4k

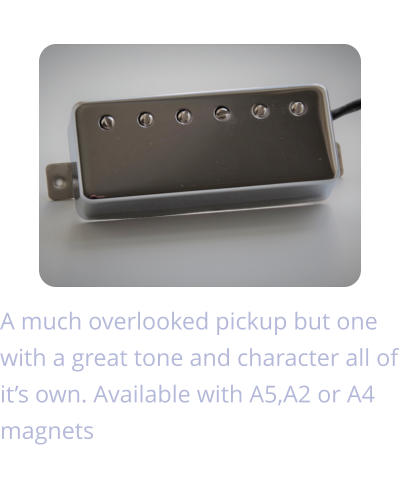

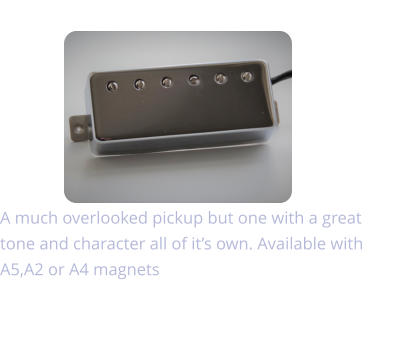

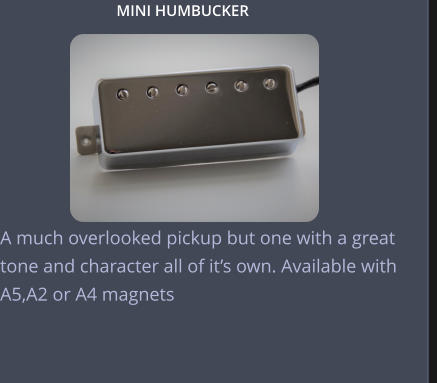

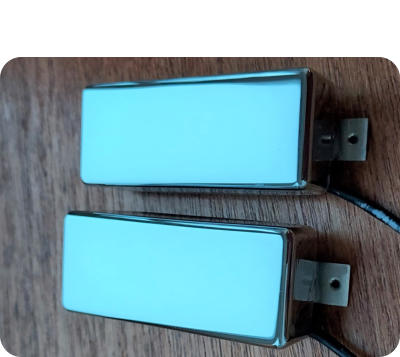

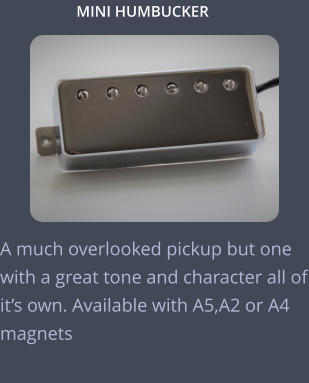

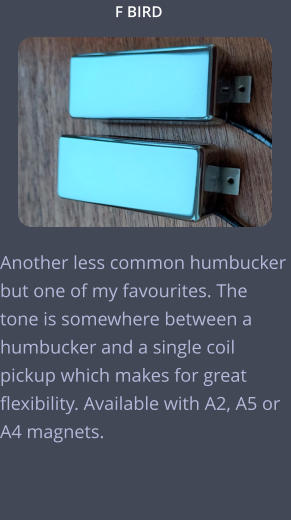

MINIHUMBUCKER
Available as shown (Model-F) with twin bar
magnets and keeper plate, enclosed cover or with
six exposed pole screws and single bar magnet
(Model-MHB).

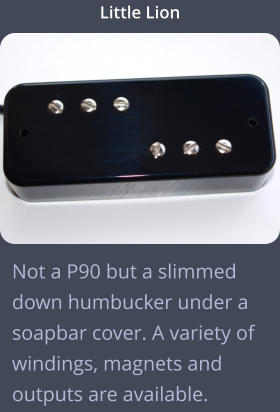

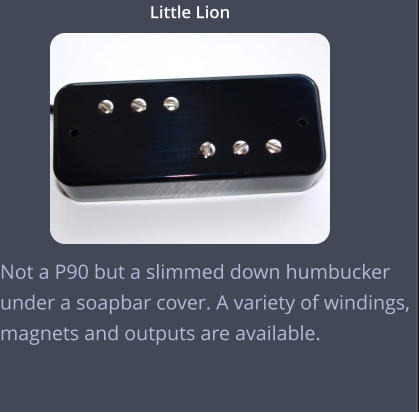

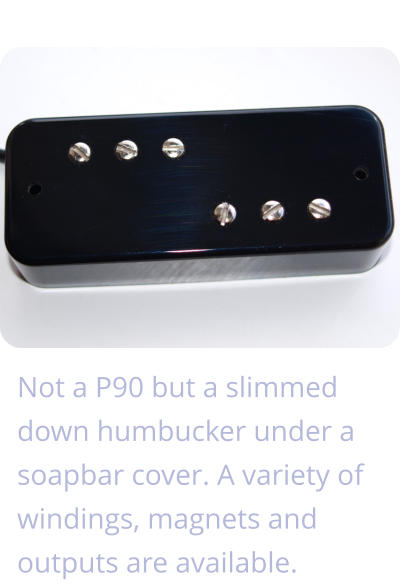

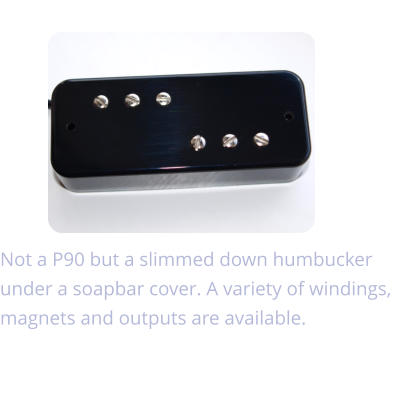

LITTLE LION
Soapbar sized humbucker with a choice of windings and magnets to suit your needs.
Available with black or cream covers

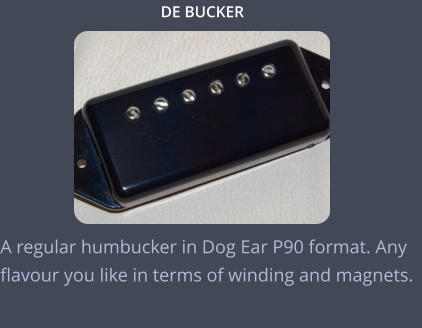

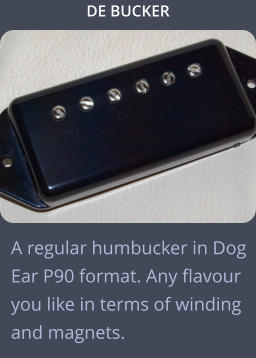

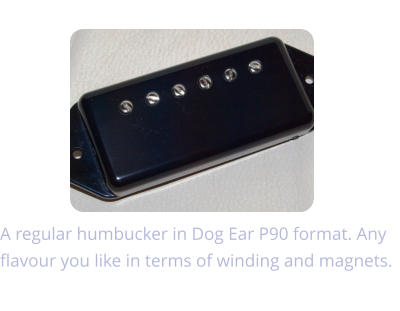

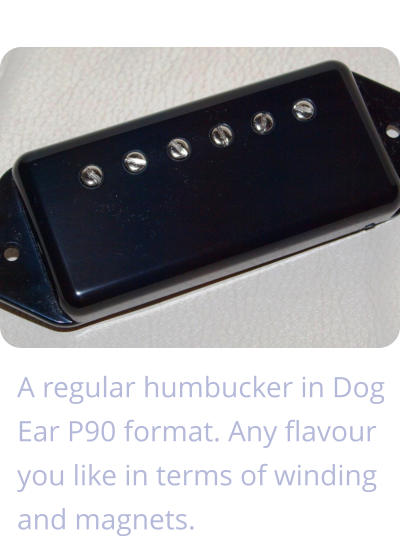

DOGEAR AND JM STYLE HUMBUCKERS
DE Humbucker to the left and JM Humbucker to the
right. Both available with all of the winding and
magnet options as my standard humbuckers.
